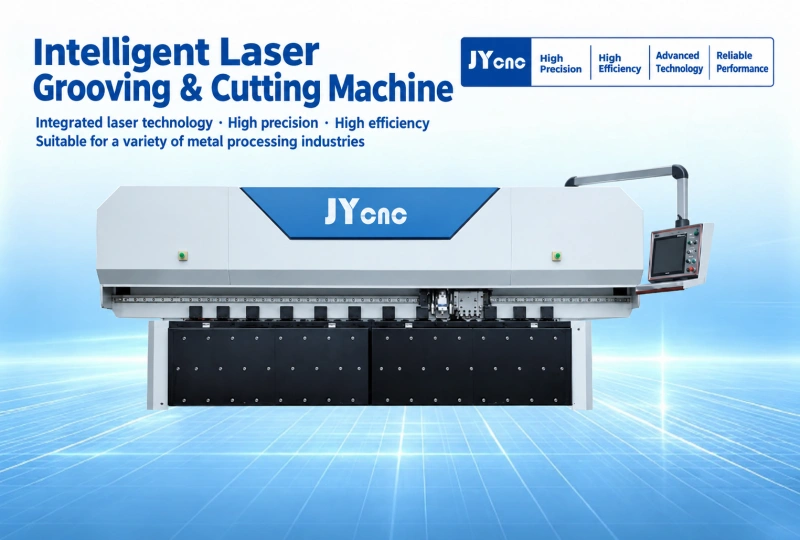

Intelligent Laser Grooving & Cutting Machine

Functions:

1. CNC V-grooving: Grooves V-grooves at bending points on sheet metal such as stainless steel and aluminum plates, achieving clean right angles after bending, eliminating rounded corners, and improving appearance quality.
2. Integrated laser cutting: Completes sheet metal outline cutting, hole drilling, and edge trimming on the same machine. One-time clamping eliminates the need for secondary handling and positioning, reducing errors.
3. Some models support grooving + shearing + laser cutting in one unit, suitable for conventional sheet metal such as cabinets, fire doors, and chassis/racks; primarily for unidirectional (transverse) grooving, suitable for batch processing of long strips of sheet metal.

Product Details

Technical Specifications

Item / Model	JYNC-3213-PQ	JYNC-3216-PQ	JYNC-4213-PQ	JYNC-4216-PQ	JYNC-6216-PQ	Remarks
Core Component Configuration
Laser Source	1,000 W / 1,500 W / 2,000 W / 3,000 W					Shenzhen Chuangxin Laser
Height Controller	Hongyu CHC-1000L, Version V1.0					Shenzhen, China
Fiber Laser Cutting Head	Wanshunxing KC15A					Shenzhen, China
Lead Screw	Henghe 3232, 2510	Henghe 3232, 2510	Henghe 3232, 2510	Henghe 3232, 2510	Henghe 4040, 2510	Henghe [300946]
Guide Rail	Henghe HG35/HG30	Henghe HG35/HG30	Henghe HG35/HG30	Henghe HG35/HG30	Henghe HG35/HG35	Henghe [300946]
CNC System	We self-developed a grooving and cutting system, 17-inch display, IBOX-106V2GT industrial computer					机友(JI YOU) CNC
Motion Controller	GoogolTech GT2-400					Googol Technology [301510]
CNC Chiller	HL-1000 / 1500 / 2000 / 3000-QG2/2					Wuhan Hanli
X-Axis Servo Motor	4000 W	4000 W	4000 W	4000 W	4000 W	China C-Jiang [300124]
Y-Axis Servo Motor	2000 W	2000 W	3000 W	3000 W	4000 W	China C-Jiang [300124]
Z-Axis Servo Motor	400 W	400 W	400 W	400 W	400 W	China C-Jiang [300124]
Cutting Head Servo System	400 W with Brake	400 W with Brake	400 W with Brake	400 W with Brake	400 W with Brake	China C-Jiang [300124]
Hydraulic Pump	VP-30	VP-30	VP-30	VP-30	VP-40	Taiwan Hi-Force Hydraulic
Hydraulic Valve Assembly	V3067-NC-AC220V/DSG-03-3C3-A2-N 220V					Taiwan Shin-Yi
Reducer	PAR140-L1-5-P2 / PAR60-L1-5-P2					Shenzhen Ruigeer
Grinding Gear / Rack	3M-29×29 / 3M-25Z					Taiwan Hopco

Main Technical Specifications

Item / Model	JYNC-3213-PQ	JYNC-3216-PQ	JYNC-4213-PQ	JYNC-4216-PQ	JYNC-6216-PQ	Remarks
Maximum X-Axis Travel	3750 mm	3750 mm	4750 mm	4750 mm	6750 mm
Maximum Y-Axis Travel	1250 mm	1550 mm	1250 mm	1550 mm	1550 mm
Maximum Z-Axis Travel	30 mm	30 mm	30 mm	30 mm	30 mm
Maximum W-Axis Travel	100 mm	100 mm	100 mm	100 mm	100 mm
Maximum Processing Capacity	6 × 1250 × 3200 mm	6 × 1550 × 3200 mm	6 × 1250 × 4200 mm	6 × 1550 × 4200 mm	6 × 1550 × 6200 mm
X-Axis Repeat Positioning Accuracy	±0.05 mm
Y-Axis Repeat Positioning Accuracy	±0.03 mm
Z-Axis Repeat Positioning Accuracy	±0.01 mm
W-Axis Repeat Positioning Accuracy	±0.03 mm
Maximum Rapid Traverse Speed X	100 m/min	100 m/min	100 m/min	100 m/min	100 m/min
Maximum Rapid Traverse Speed Y	80 m/min	80 m/min	80 m/min	80 m/min	100 m/min
Maximum Worktable Load	500 kg	500 kg	800 kg	800 kg	1000 kg
Machine Weight	8,500 kg	8,800 kg	11,000 kg	11,500 kg	18,000 kg	±50 kg
Overall Dimensions (L × W × H)	4.6 × 2.25 × 2.1 m	4.6 × 2.55 × 2.1 m	5.6 × 2.25 × 2.1 m	5.6 × 2.55 × 2.1 m	7.6 × 2.55 × 2.5 m
Machine Floor Area	11 m²	12 m²	13 m²	15 m²	18 m²
Machine System Air Pressure	0.6 MPa					Pneumatic Motion
Cutting System Air Pressure	2.0 MPa					Cutting
Stainless Steel Cutting Thickness	3 mm / 4.5 mm / 6 mm, depending on laser power					Nitrogen Cutting
Carbon Steel Cutting Thickness	5 mm / 6.5 mm / 7.5 mm, depending on laser power and machine travel					High-Pressure Air
