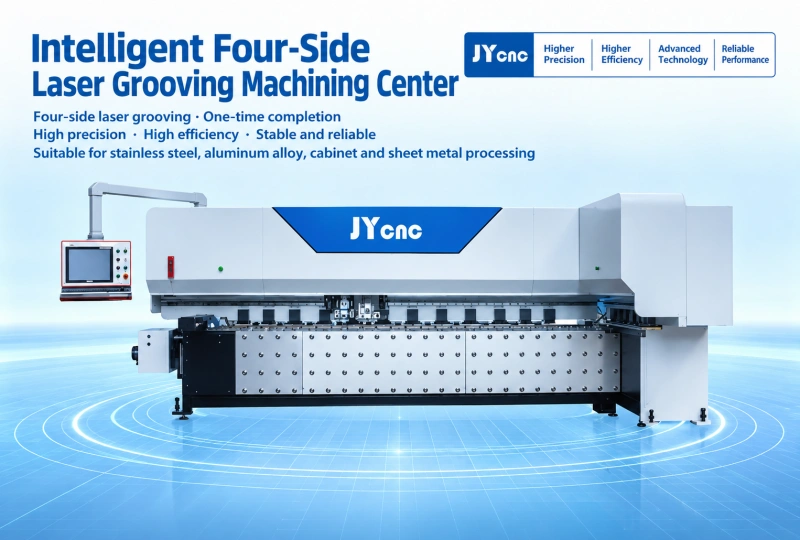

Functions:
1. Supports horizontal and vertical bidirectional grooving (four-sided grooving), allowing for point-to-point grooving at any location. Grooves can be processed in all four directions of the sheet metal without the need to flip the sheet; direction switching is fully automatic.

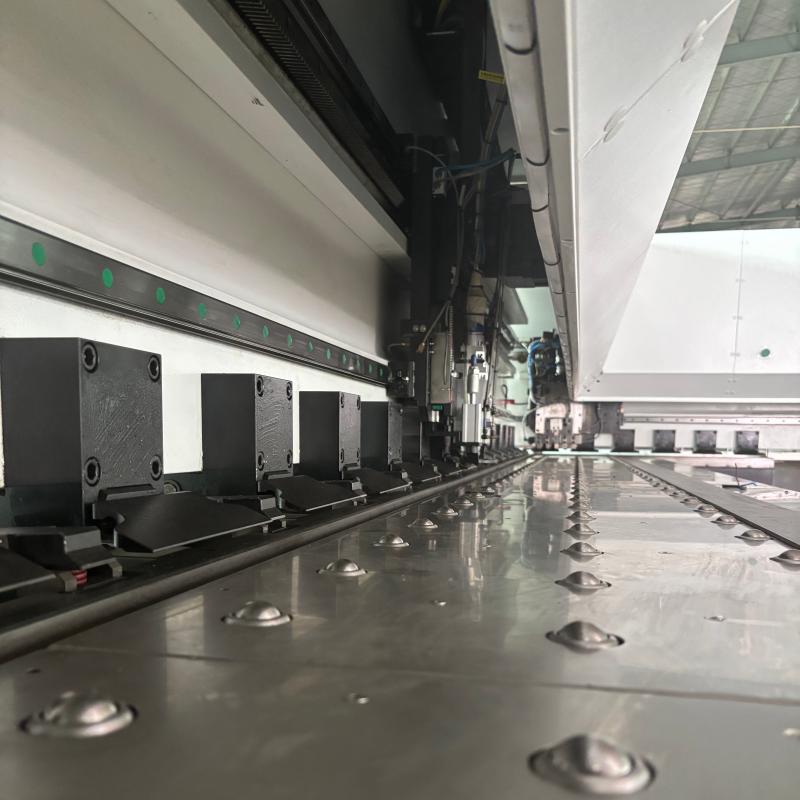

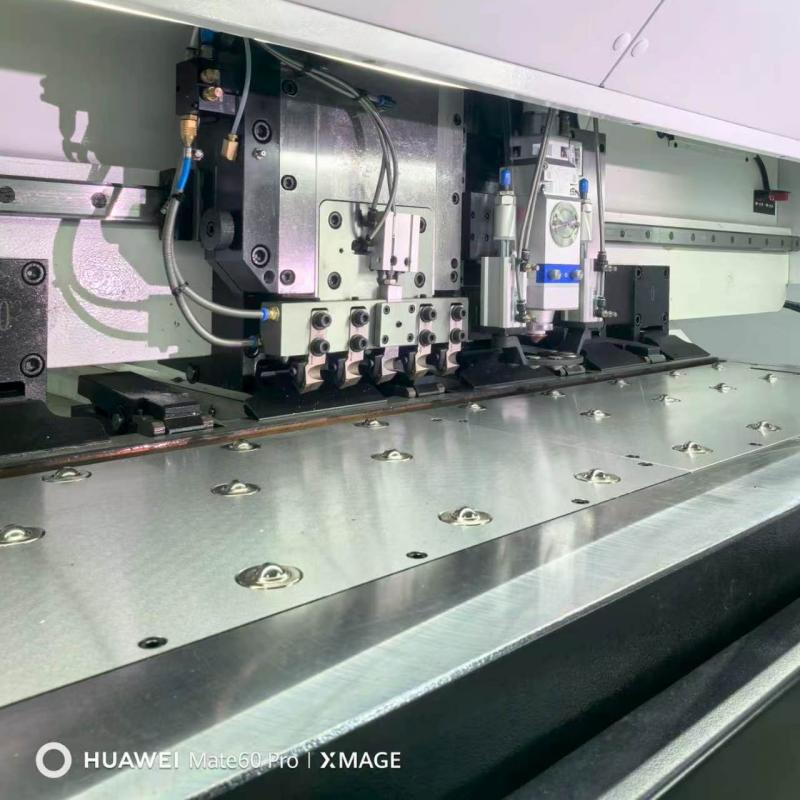

2. Direct laser cutting after grooving; grooving and cutting are completed in one integrated process, suitable for complex sheet metal parts with irregular shapes and multi-directional angles.
3. Offers greater processing freedom, capable of handling various sizes and types of workpieces. Ideal for high-precision non-standard sheet metal production such as stainless steel decorative parts, complex cabinets, and metal covers.
| Item / Model | JYNCS-3213-PQ | JYNCS-3216-PQ | JYNCS-4213-PQ | JYNCS-4216-PQ | JYNCS-6216-PQ | Remarks |
|---|---|---|---|---|---|---|
| Core Component Configuration | ||||||
| Laser Source | 1500 W | 2000 W | 3000 W | Chuangxin Laser, Shenzhen | ||
| Height Controller | Hongyu CHC-1000L, Version V1.0 | Shenzhen, China | ||||

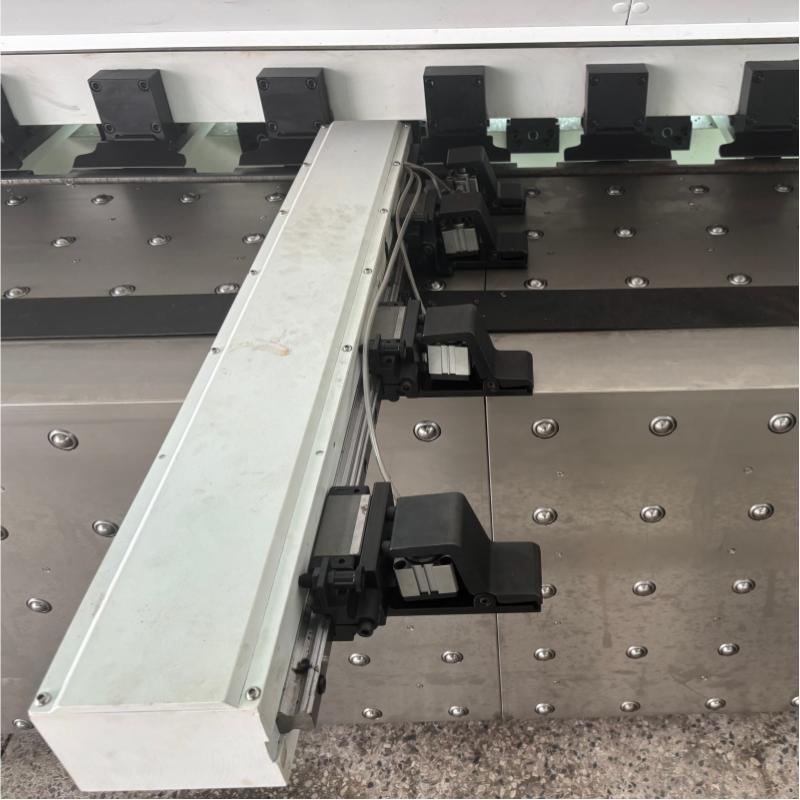

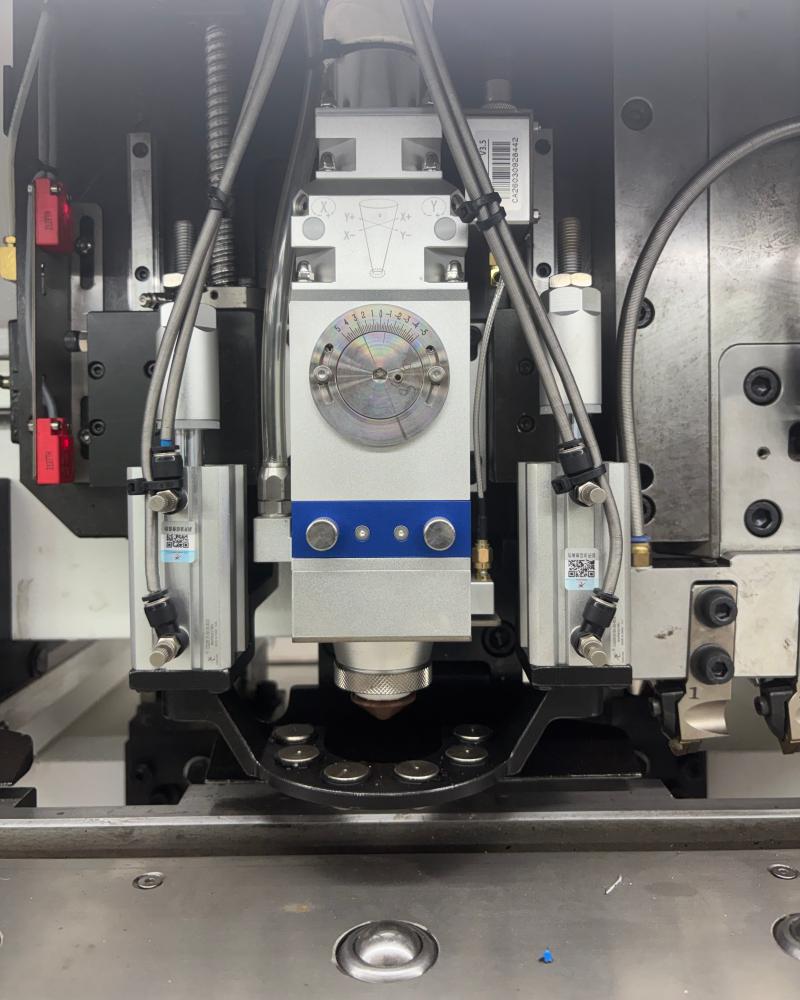

| Fiber Laser Cutting Head | Wanshunxing KC15A | Shenzhen, China | ||||
| Lead Screw | Shangyin 3232, 2510 | Shangyin 3232, 2510 | Shangyin 3232, 2510 | Shangyin 3232, 2510 | Shangyin 4040, 2510 | Taiwan Shangyin Technology |
| Guide Rail | Shangyin HG35/HG30 | Shangyin HG35/HG30 | Shangyin HG35/HG30 | Shangyin HG35/HG30 | Shangyin HG35/HG35 | Taiwan Shangyin Technology |

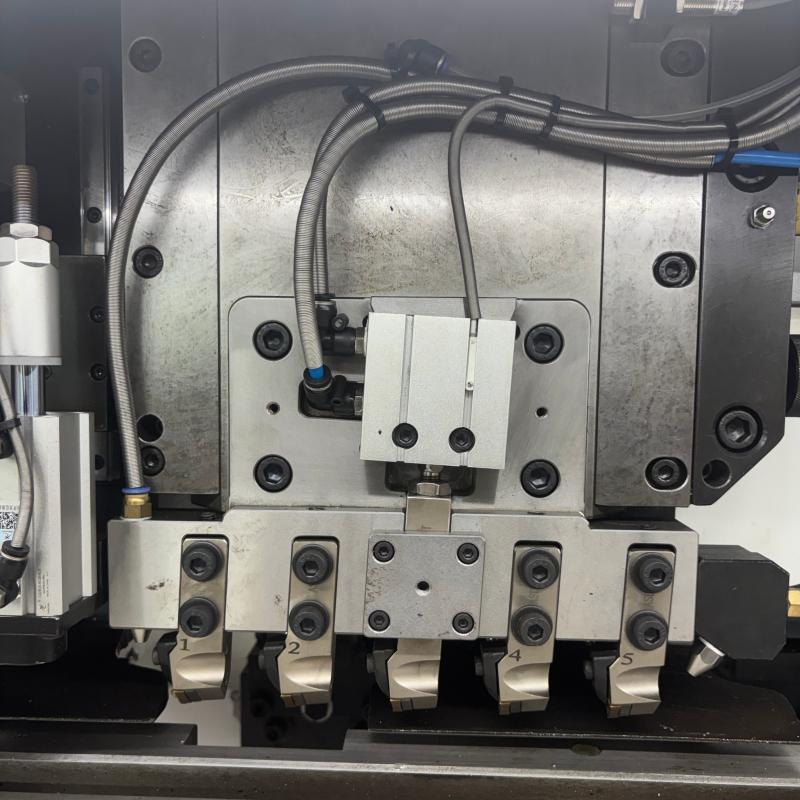

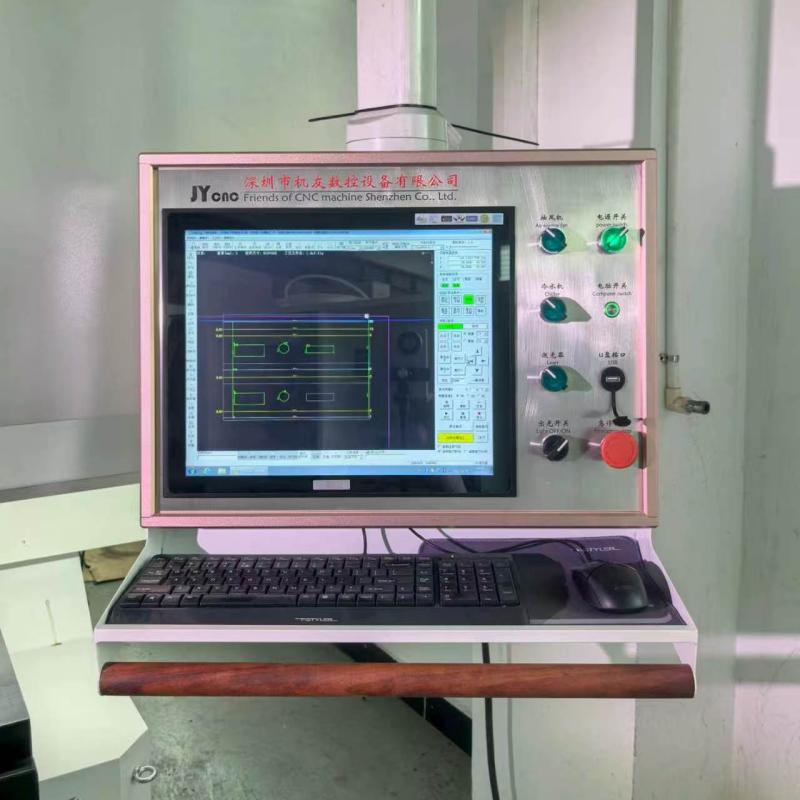

| CNC System | We self-developed a grooving and cutting system, 17-inch display, IBOX-106V2G industrial control computer | 机友(JI YOU) CNC | ||||
| Motion Control | GoogolTech motion control card: GTS-800-PG-PCIe-00 | Shenzhen Googol Technology | ||||
| CNC Chiller | HL-1000 / 1500 / 2000 / 3000-QG2/2 | Wuhan Hanli | ||||
| Servo System X-Axis |
4000 W | 4000 W | 4000 W | 4000 W | 4000 W | Yaskawa |
| Servo System Y-Axis |
2000 W | 2000 W | 3000 W | 3000 W | 4000 W | Yaskawa |
| Servo System Z-Axis |
400 W | 400 W | 400 W | 400 W | 400 W | Yaskawa |
| Servo System A-Axis |
3000 W | 3000 W | 3000 W | 3000 W | 3000 W | Yaskawa |
| Servo System B-Axis |
750 W | 750 W | 750 W | 750 W | 1500 W | Yaskawa |
| Servo System C-Axis |
400 W | 400 W | 400 W | 400 W | 400 W | Yaskawa |
| Cutting Head Servo System | 400 W with Brake | 400 W with Brake | 400 W with Brake | 400 W with Brake | 400 W with Brake | Yaskawa |
| Hydraulic Pump | VP-30-30 | VP-30-30 | VP-30-30 | VP-30-30 | VP-40-30 | Taiwan Hydraulic |
| Hydraulic Valve Assembly | V3067-NC-AC220V/DSG-03-3C3-A2-N 220V | Taiwan Shin-Yi | ||||
| Reducer | PAR140-L1-5-P2 / PAR90-L1-10-P2 / PAR60-L1-5-P2 | China Niugear | ||||
| Grinding Gear / Rack | 3M-29×29 / 3M-25Z / 2M-26×26 | Taiwan Hopco | ||||
| Item / Model | JYNCS-3213-PQ | JYNCS-3216-PQ | JYNCS-4213-PQ | JYNCS-4216-PQ | JYNCS-6216-PQ | Remarks |
|---|---|---|---|---|---|---|
| Maximum Travel Main X-Axis |
3750 mm | 3750 mm | 4750 mm | 4750 mm | 6750 mm | |
| Maximum Travel Main Y-Axis |
1250 mm | 1500 mm | 1250 mm | 1500 mm | 1500 mm | |
| Maximum Travel Main Z-Axis |
30 mm | 30 mm | 30 mm | 30 mm | 30 mm | |
| Maximum Travel Auxiliary A-Axis |
1750 mm | 2000 mm | 1750 mm | 2000 mm | 2000 mm | |
| Maximum Travel Auxiliary B-Axis |
3250 mm | 3250 mm | 4250 mm | 4250 mm | 6250 mm | |
| Maximum Travel Auxiliary C-Axis |
30 mm | 30 mm | 30 mm | 30 mm | 30 mm | |
| Maximum Processing Capacity | 6 × 1250 × 3250 | 6 × 1500 × 3250 | 6 × 1250 × 4250 | 6 × 1500 × 4250 | 6 × 1500 × 6250 | |
| X-Axis Repeat Positioning Accuracy | ±0.05 mm | |||||
| Y-Axis Repeat Positioning Accuracy | ±0.03 mm | |||||
| Z-Axis Repeat Positioning Accuracy | ±0.01 mm | |||||
| A-Axis Repeat Positioning Accuracy | ±0.05 mm | |||||
| B-Axis Repeat Positioning Accuracy | ±0.03 mm | |||||
| C-Axis Repeat Positioning Accuracy | ±0.01 mm | |||||
| Overall Dimensions (L × W × H) |
6.96 × 2.93 × 2.1 m | 6.96 × 3.53 × 2.1 m | 8.96 × 2.93 × 2.1 m | 8.96 × 3.53 × 2.1 m | 12.96 × 3.53 × 2.5 m | |
| Machine Floor Area | 21 m² | 25 m² | 27 m² | 32 m² | 46 m² | |
| Machine Weight | 10,000 kg | 11,000 kg | 12,000 kg | 14,000 kg | 22,000 kg | ±50 kg |
| Machine System Air Pressure | 0.8 MPa | Pneumatic Motion | ||||
| Cutting System Air Pressure | 2.0 MPa | Cutting | ||||
| Stainless Steel Cutting Thickness |
3 mm / 4.5 mm / 6 mm, depending on laser power | Nitrogen Cutting | ||||
| Carbon Steel Cutting Thickness |
5 mm / 6.5 mm / 7.5 mm, depending on laser power and machine travel | High-Pressure Air | ||||
